I made an electric bike.
a few years ago I made a gas-powered bike, but it was too loud and I was too self-conscious to use it frequently. I like electronics and cycling, so I decided to make an ebike
I had a spare bike. I purchased a 1200W motor from amazon. but pre-built e-bike batteries were took expensive, so I decided to build my own.
I bought 52 high-amp rated 18650 batteries, a 40A BMS, and some other components. following this guide, I completed the battery build with only a few unscheduled rapid electrical discharges
currently when riding, I wear a backpack with the battery inside. if the battery catches fire, it’s easier to drop the backpack than dismount a flaming bike traveling 30+ mph
the top recorded speed is 40mph, the range is theoretically 30 miles at max power, but can likely go farther at lower speeds (aka hypermiling)
images

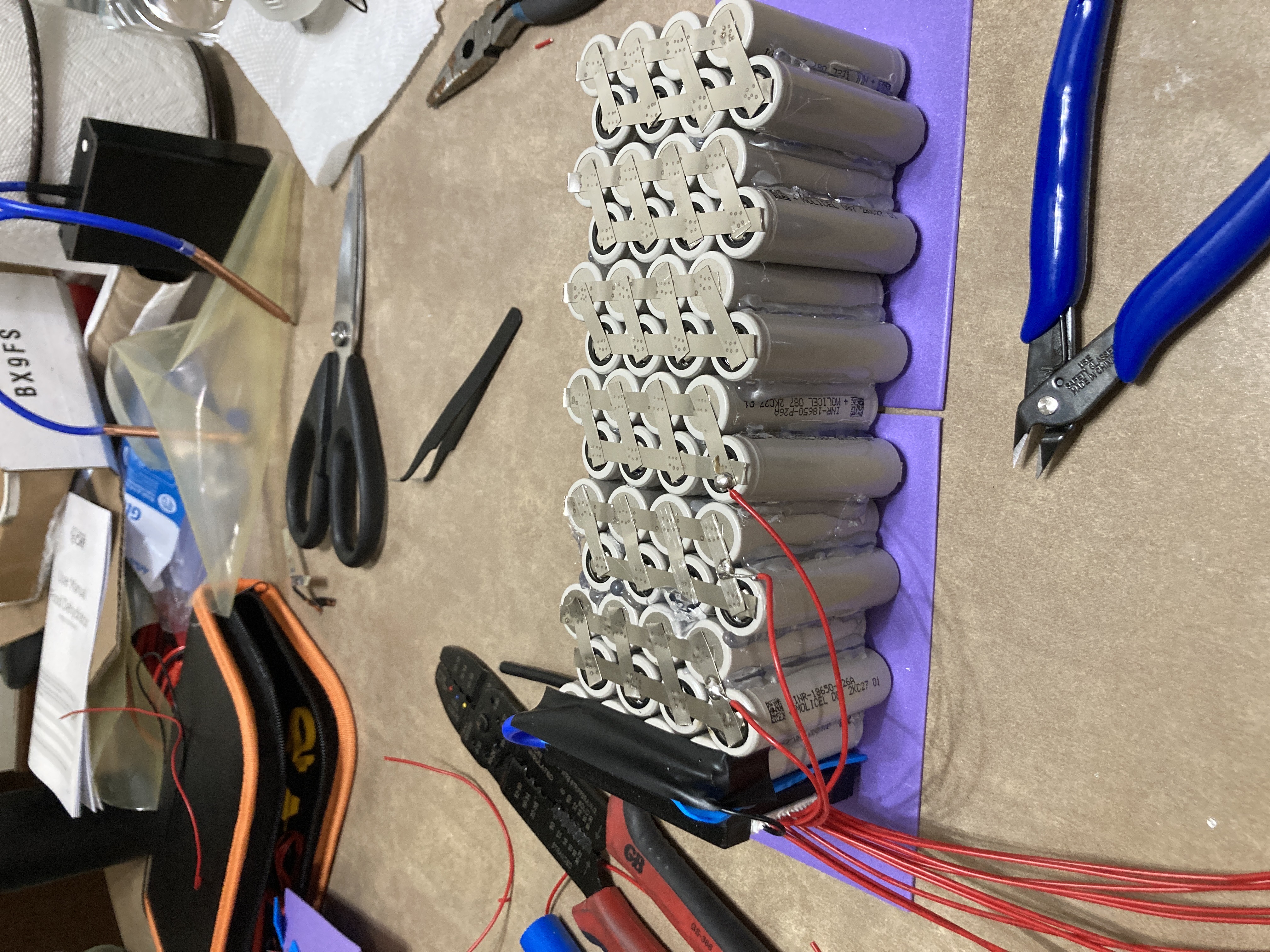

adding a BMS

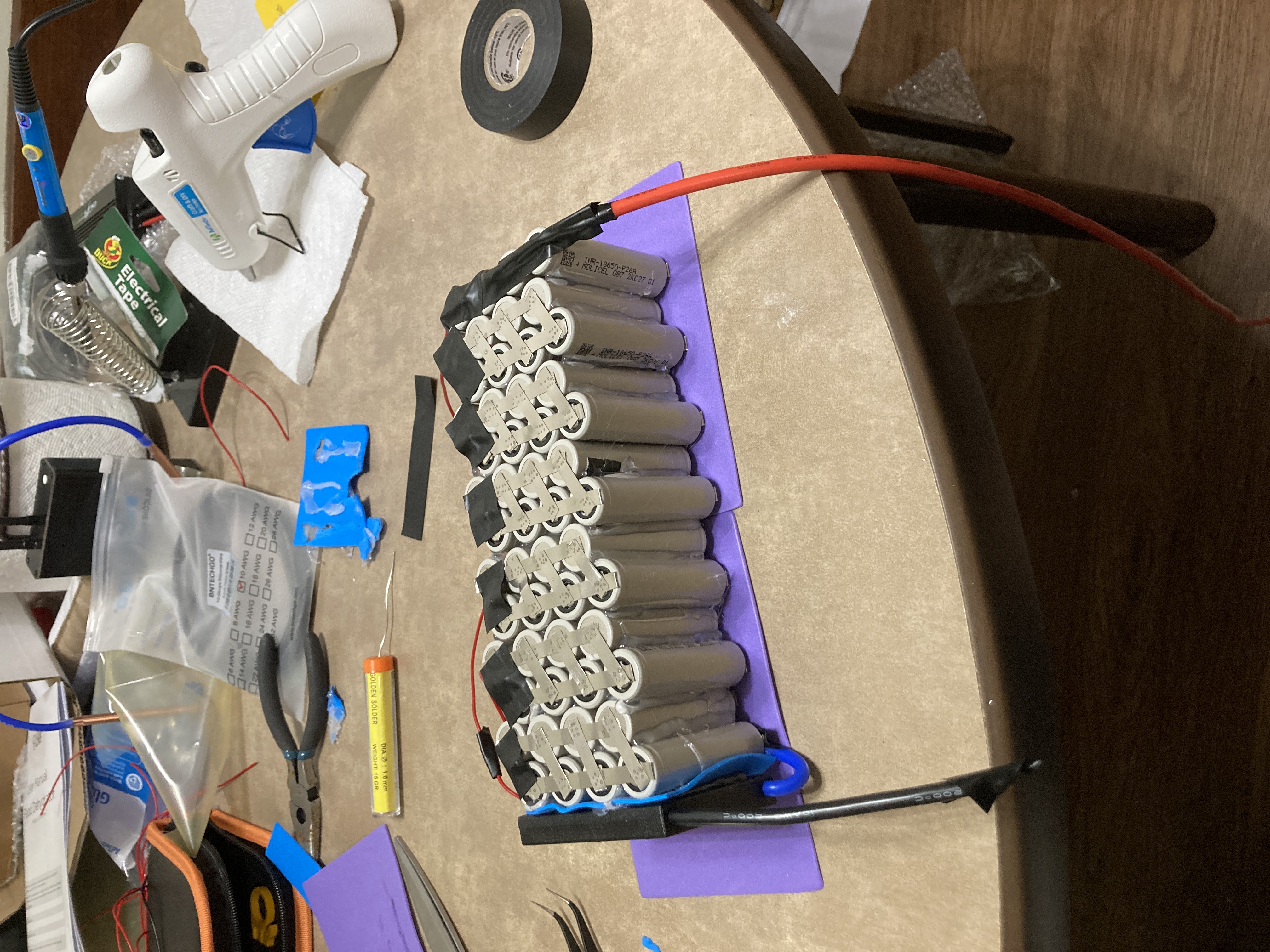

added positive and negative leads — the battery is complete

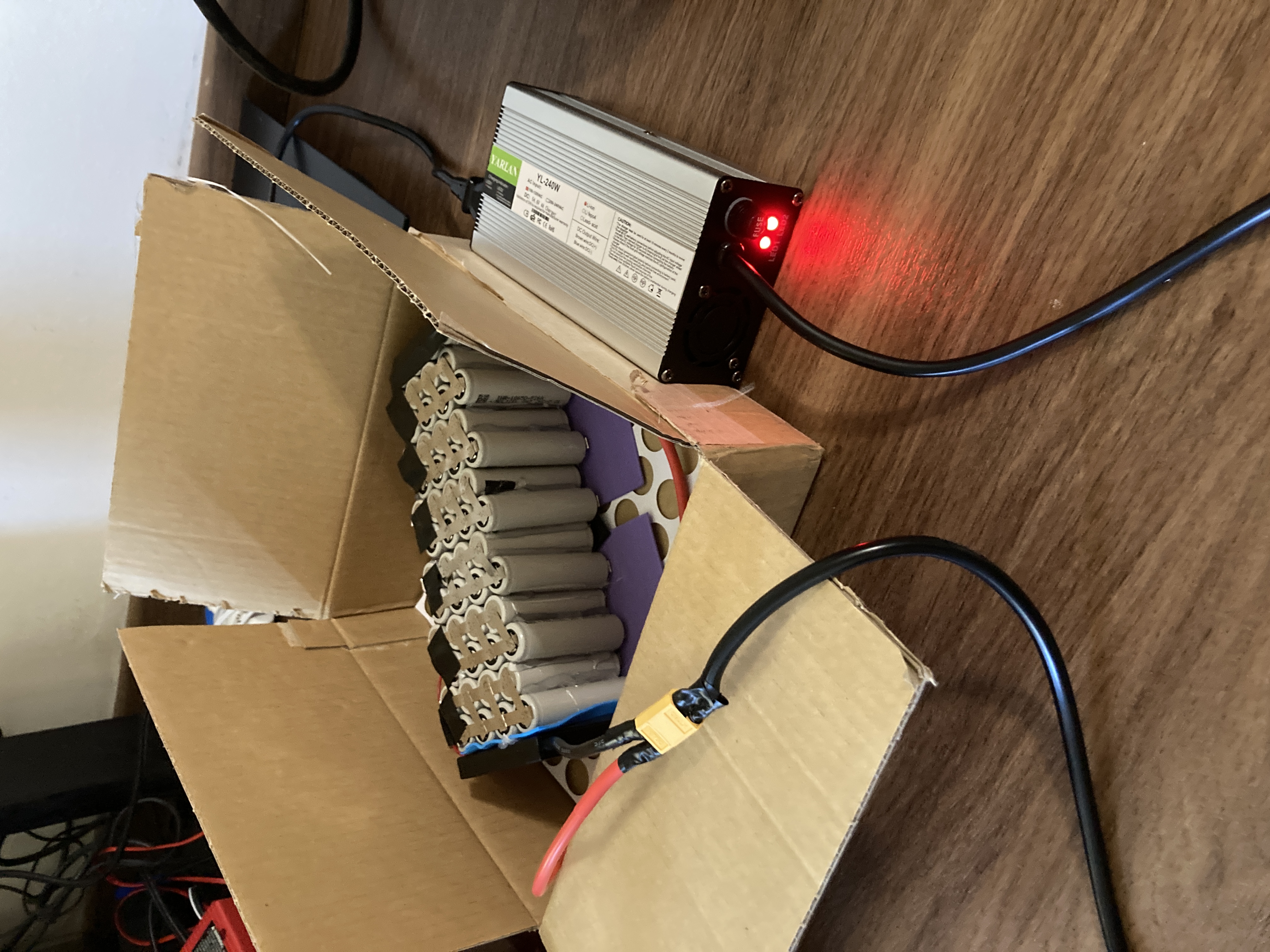

time to charge it

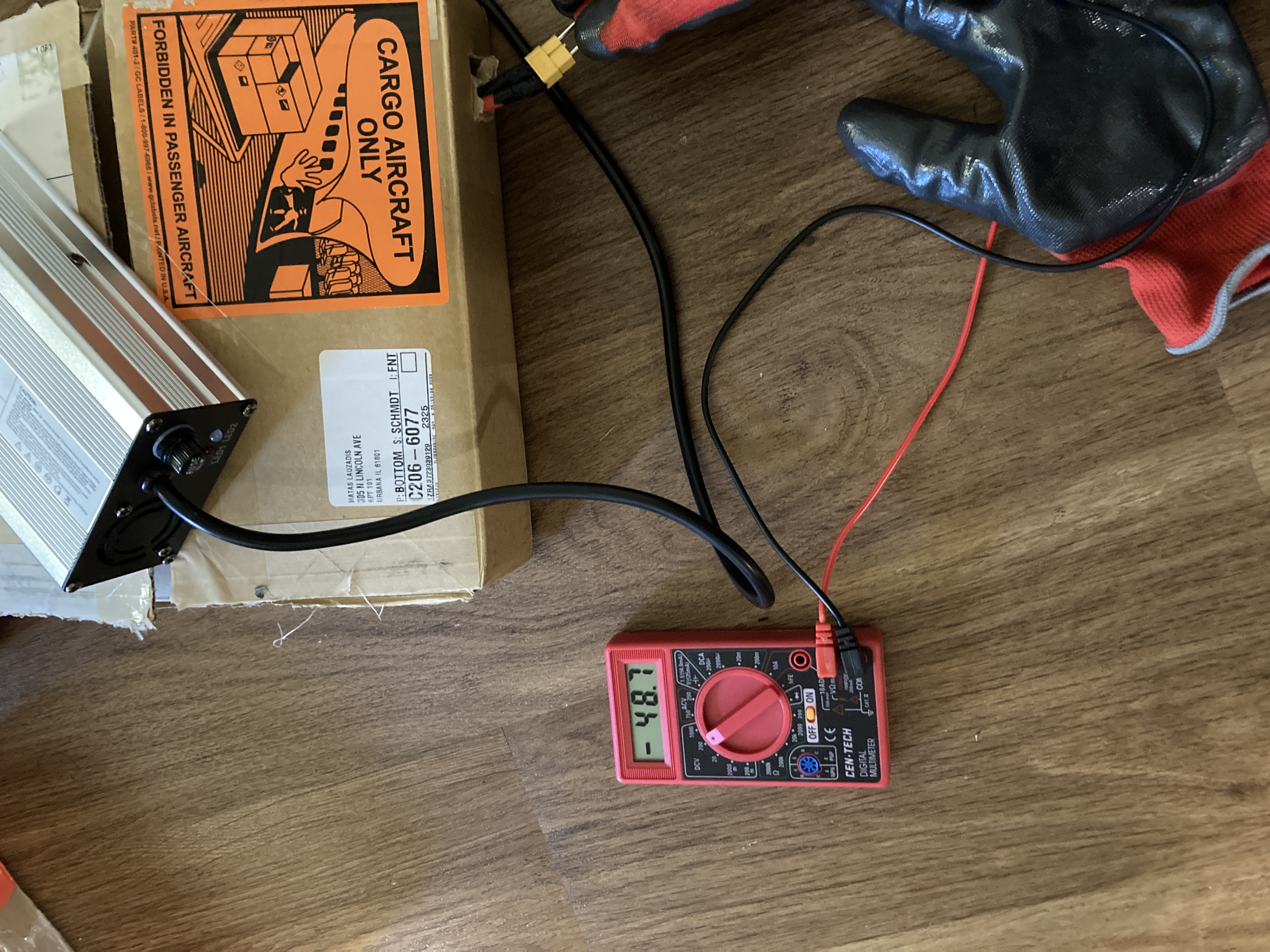

always check your voltage

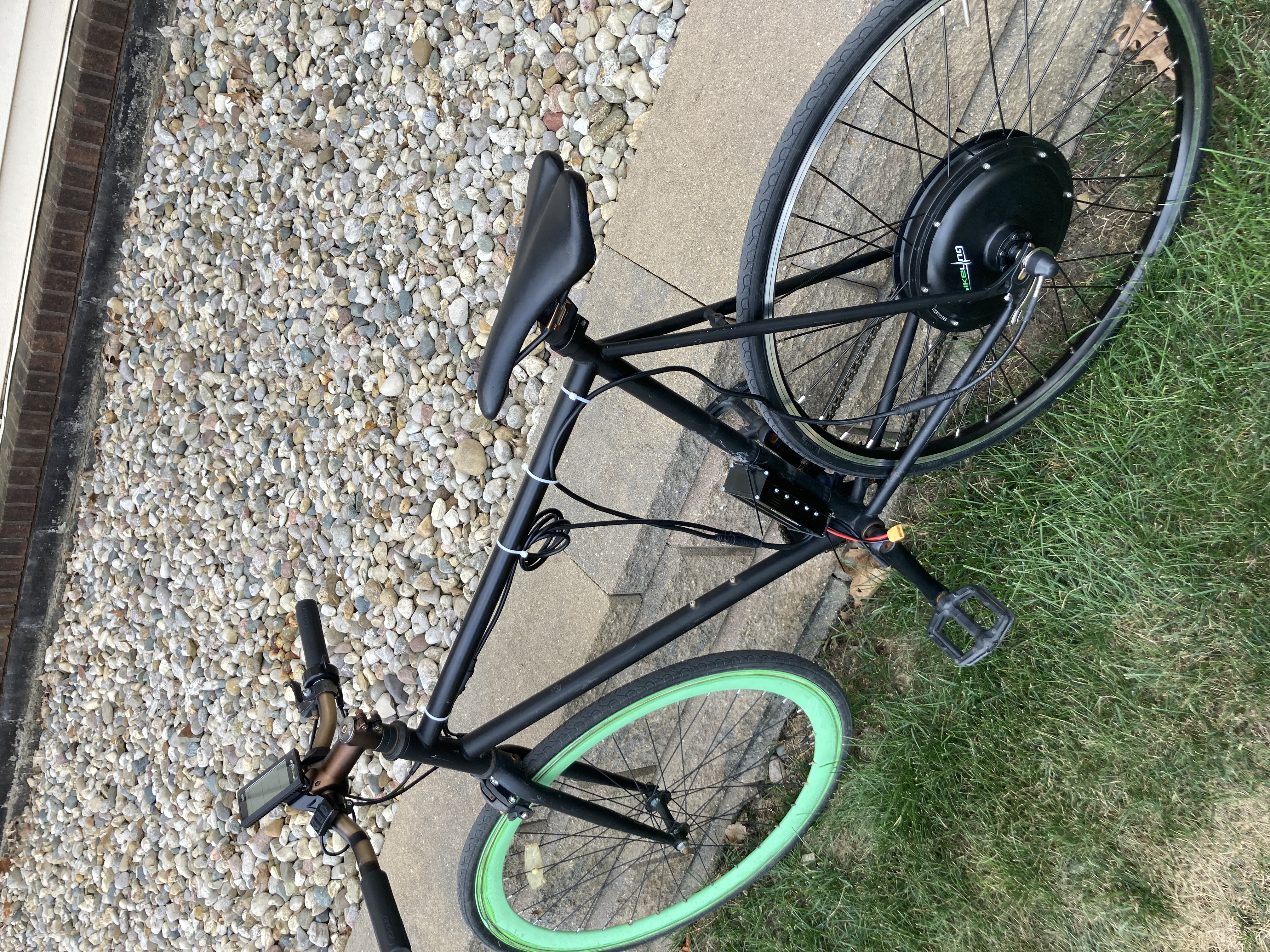

the bike is ready
cost breakdown
total cost: 785.01
| Item | Cost (USD) | Link |
|---|---|---|
| EBIKELING Waterproof Ebike Conversion Kit for Electric Bike 700C Rear Wheel | 389.99 | https://www.amazon.com/dp/B07MY91KHZ?th=1&psc=1 |
| MOLICEL/NPE INR-18650-P26A 35A 2600MAH FLAT TOP 18650 BATTERY | 204.60 | https://liionwholesale.com/products/molicel-npe-p26a-35a-2600mah-flat-top-18650-battery-authorized-distributor-inr-18650-p26a?variant=16132682154078 |
| Single-Speed, Bicycle Chain, 1/2 × 1/8 inch,v116 Links | 13.88 | https://www.amazon.com/gp/product/B078HRX7QS |
| 54.6V 4A Charger | 58 | https://www.amazon.com/gp/product/B07PN7LN92 |
| Nickel Strips 0.15x6mm | 12.99 | https://www.amazon.com/gp/product/B08RJ8C28J |
| 10 gauge silicone wire | 10.88 | https://www.amazon.com/gp/product/B017TGYW3S |
| 10 Pair XT60 Connectors | 7.99 | https://www.amazon.com/gp/product/B07DVDKL42 |
| DALY BMS 13S 48V 40A | 30.47 | https://www.amazon.com/gp/product/B08SJPFWP8 |
| 3-Pin XLRF Cable Connector | 7.95 | https://www.amazon.com/gp/product/B002EDVPU0 |
| Sales Tax | 48.26 | https://www.illinois.gov/ | |
